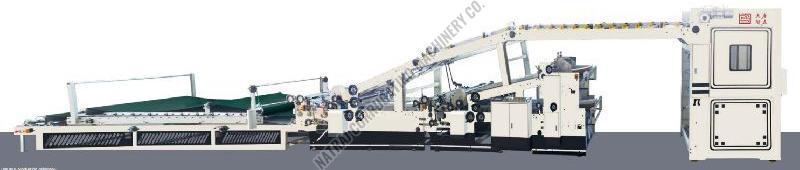

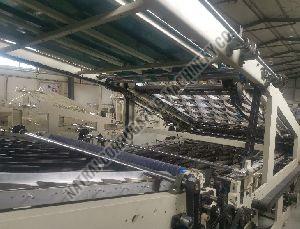

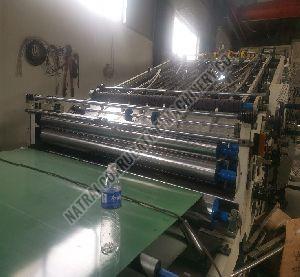

Nagpal Chengyuan 1450 Automatic Three-in-one 5 Ply Flute Laminating Machine

Link Copied
35 Lac - 45 Lac / Set
Business Type Manufacturer, Exporter, Supplier, Retailer, Importer
After-Sales Service Provided Provided
Brand Name Nagpal Natraja Chengyuan
Warranty 1 Year
Click to view more

Product Details

Driven Type
Electric
Power
28 HP
Automatic Grade
Fully Automatic
Condition
New
Voltage
380V
Color
White
Weight
8800kg
Application
Laminating Machinery,2ply+2ply+1 ply Sheet pasting
Certification
ISO 9001:2008
Type
Automatic Flute Laminating Machine
Name
5 ply Flute laminator
Product Code
03
Port
TKD Delhi
Payment Terms
L/C, D/P, T/T
Delivery Time
Within 30 working days
Packaging Details
Standard Packing
Overview:

The Nagpal Series Automatic Flute Laminator, professionally manufactured by our company, is designed specifically for the printing and packaging industry. It is suitable for cardboard-to-cardboard and corrugated-to-cardboard lamination with high precision and excellent flatness. This machine supports a wide range of flute types, offering versatile performance for various corrugated applications.

Applications:
  • Suitable for A, B, C, D, E, F, N flutes

  • Compatible with 3-ply, 5-ply, and 7-ply corrugated sheets

  • Ensures excellent bonding and flatness, ideal for high-end printing and packaging needs

Key Features:
  • High Accuracy & Flatness:
    Precise alignment and pressure control ensure smooth, bubble-free lamination with excellent surface flatness.

  • Broad Compatibility:
    Works with multiple flute profiles and paper combinations, offering unmatched flexibility in production.

  • Stability & Durability:
    All major mechanical components are made from genuine materials by trusted manufacturers for long service life and reliability.

  • Premium Electrical System:
    Electrical components from world-renowned brands and imported bearings in key areas guarantee consistent performance and minimal downtime.

  • Low Maintenance & Easy Operation:
    The machine is engineered for ease of use, with minimal wear and tear, fast setup, and simple maintenance routines, reducing production costs over time.

Component Breakdown: 1. Surface Paper Feeding Part

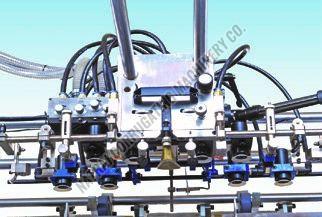

  • High-Precision Feeding Mechanism

  • Uses a Taiwan-made feeding device for smooth and accurate top sheet feeding

  • Minimizes paper jam and misalignment issues

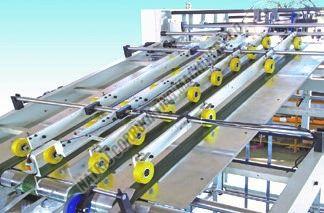

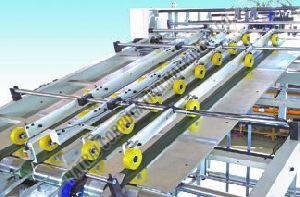

2. Surface Paper Conveying Part
  • Equipped with a central gear made of wear-resistant PU rubber

  • Works in tandem with a high-friction conveying belt

  • Ensures stable and smooth transfer across a wide range of sheet thicknesses

  • Non-abrasive design prevents damage to printed surfaces

Additional Highlights:
  • Centralized Control Panel: Simplifies operator control and monitoring

  • Precision Lamination System: Maintains consistent bonding even at high speeds

  • Energy Efficient Design: Reduces power consumption without sacrificing performance

  • Safety Features: Includes emergency stops, overload protection, and guarding mechanisms

Yes! I am interested


Machine Specification

Model

ZL-1450

Max. paper size

1450×1100mm

Min. paper size

400×400

Mini.  weight of bottom paper

150gsm

Max. weight of bottom paper

800gsm

Max.  thickness of paper

0.5-10mm

Mini. weight of face paper

150gsm

Max. weight of face paper

800gsm

Precision of paperboard and cardboard

±1.2mm

Precision of paperboard and corrugated board

±1.5mm

Machine speed

9000sheets/h

Total power

28HP

Total length

16.5M

Total weight

8800KG
