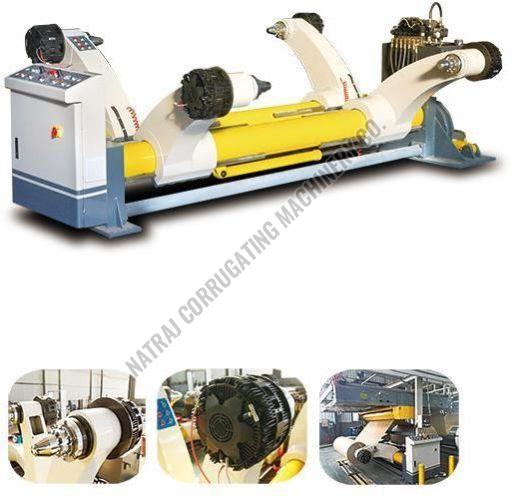

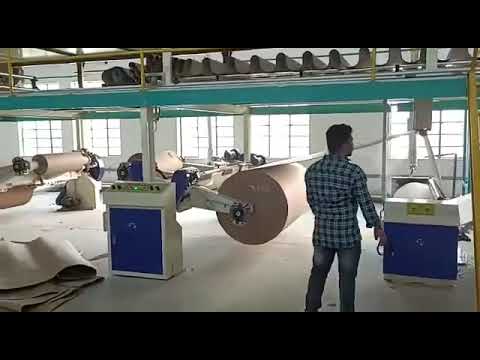

Fully Hydraulic Shaftless Mill Roll Stand

Link Copied
5.50 Lac - 7 Lac / Set
Business Type Manufacturer, Exporter, Supplier, Retailer, Importer
Warranty 1year
Driven Type Hydraulic
Power 3-6kw
Click to view more

Product Details

Automatic Grade
Automatic
Condition
New
Voltage
380V, 380v
Color
White
Weight
2000kg
Application
Paper Rolling Industry, Corrugated Board Making
Certification
ISO 9001:2008, Iso
Type
Hydraulic Shaftless Mill Roll Stand, Automatic
Hydraulic mill Reel Stand
Shaftless mill roll stand
Js corrugating machinery company hubei, china
Automatic corrugated board making machine
js 5 ply Fully automatic corrugated board machine
Js machines china
Product Code
011
Port
Delhi
Payment Terms
L/C, T/T, Other
Delivery Time
30Days

Characteristics:

1) The structure is symmetrical, can load two rolls raw paper at the same time, can change the paper roll without stop the machine. The tighten, loosen, up and down, move for center, left and right moving all use electrical control.

2) Effective working width: 1400, 1600, 1800, 2000

3) Max. raw paper dia: Ø1600mm

4) Min. raw paper size: Ø400mm×900mm

5) Max. load of single arm: 1500kg.

6) Each roll sand has two paper roll sending rails, two paper roll up dolly. Rail is made from the welding of the 12# channel steel and direction-leading pole. The dolly is made from 12# channel steel, the length of the rail is 4500mm.

7) Use disk model brake, have handle and electrical models. (can choose.)

8) The clip head is cast-iron finial model or automatic double expanded model. (can choose.)

9) Electrical elements are centralized controlled, this highly improves the production efficiency.

Technological parameters:

1. Paper roll frame working model: Mechanical electrical operation.

2. Paper roll length scope: Max.: 1600mm   Min.:900mm

3. Paper roll diameter scope: Max.: 1400mm   Min.:400mm

4. Single side max. load: 1500kg.

5. Motor power: (all are planet cycloid motor)

1) Clip motor: 0.75KW   4units   380V    50HZ

2) Up and down motor: 2.2KW   1unit  380V  50HZ

Paper roll up-dolly and rail:

1) On the dolly have direction-leading wheel, can send the paper roll stably.

2) Each roll stand has two paper roll sending rails, two paper roll up dolly, it can load the paper roll in two sides at the same time.

Yes! I am interested


Specifications

General specs :

Working width (mm) 1600mm (71 inches)
Paper mill diameter(mm) Max. 1500mm (60 inches)
Min. 300mm
Total Power 4Kw
Max. load of each side 3000Kg
Method of holding mill roll Hydraulic tension
Air supply(MPa) 0.6~0.8
Direction Left or right, according to customer

Dimension of main parts

Name of main parts Main specifications
Main shaft Diameter Φ200mm
Lifting hydro cylinder Cylinder diameterΦ100mm
Horizontal movement hydro cylinder Cylinder diameterΦ63mm

Specs of motor

Motor Voltage Electric Property Power
Motor fohydraulic 380V AC 4KW

Main mechanical and electrical parts

Name of parts Brand Note
Hydraulic system   Taiwan technology
Bearing China(Hrb) -
Electro-magnetic valve Made in Taiwan -
Contactors, thermal relay Schneider or Siemens, or Omron -



  • Guides & In-floor Trolleys
  • A set includes one in-floor trolley, one guide, each stand have two in-floor trolleys and two guides
