15 Lac / Piece( + 18% GST applicable)
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Importer |
| Usage | Corrugated Box Making |
| Country of Origin | Indore |
| Brand Name | Nagpal Natraj |
| Click to view more | |
Product Details
Material
corrugated board
Driven Type
Electric
Shape
Rectangular
Color
White
Size
1600MM, 1800MM
Model Number
RNN1800mm

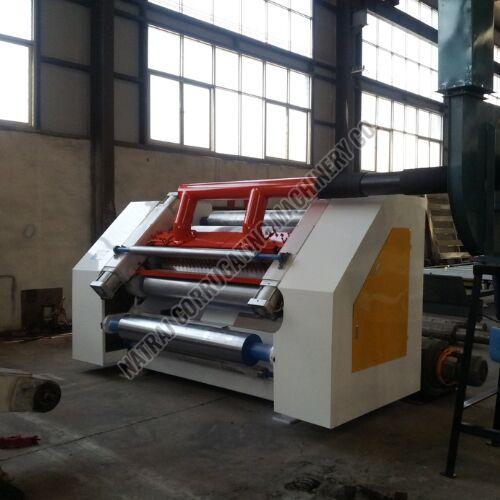

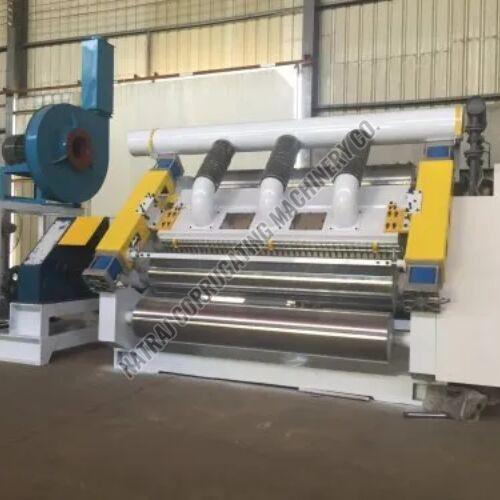

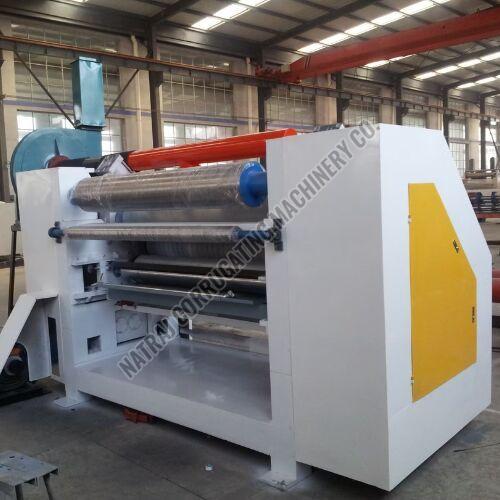

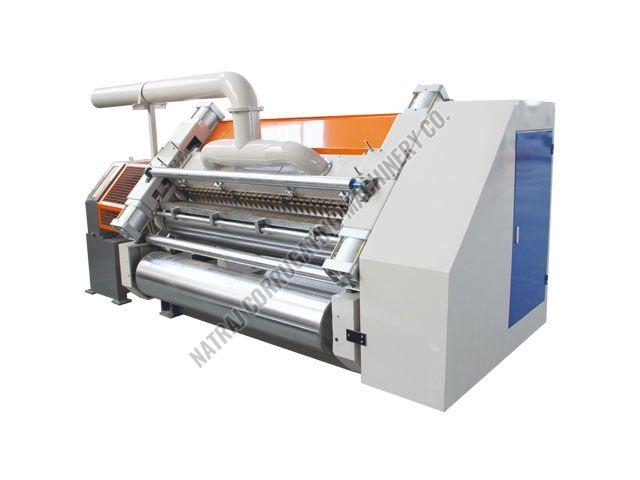

Single facer fingerless corrugation machine
high speed corrugation machine
corrugated box making machine
Automatic corrugated box making machine
Product Code
RNN-320mm
Port
india
Payment Terms
L/C, D/A, D/P, T/T
Delivery Time
2 MONTHS
Packaging Details
Container Load
Structural Features
-
Vacuum Suction Structure:
- Equipped with a high-pressure strong blower.
- Suction system includes a silencer.
- Gas supply and electrical control cabinet are integrated into the same operation cabinet, located at least 1.5 meters away from the main unit.
- Fully enclosed operational base and wallboard made of cast iron.
- Wallboard thickness: 130mm.
- Equipped with universal joints.
-
Corrugated Roller:
- Material: 48CrMo alloy steel, quenched with laser hardening.
- Surface finish on the main roll with a corrugated diameter of ¢280mm.
- Surface hardness: HRC60 or above.
- Key parts of the tile and pressure roller bearings are high-temperature bearings from Wafangdian.
-
Pressure Roller:
- Diameter: ¢284mm, with surface grinding and chrome plating.
- Controlled by a cylinder for upward and downward movement.
- Made from 45# carbon steel, quenched with cushioning devices.
-
Glue System:
- Pneumatic control for glue application and retraction.
- Glue roller diameter: ¢215mm, with engraved and polished surface.
- 25-line pit style textured machining with hard chrome plating.
- Scraping roller surface is polished and hard chrome plated.
-
Corrugated and Pressure Rollers:
- Material sourced from Central Plains Steel.
- Corrugating unilateral height: 0.15mm.
- High-pressure roller unilateral height: 0.075mm.
- Includes stopper and ¢160mm cylinder with compression cylinder.
-
Preheat Roller:
- Made from seamless steel pipe by Tiangang.
- Diameter: ¢300mm.
- Connected with metal hoses.
Technical Parameters
- Effective Width: 1600mm
- Operation Direction: Left or right (determined as per customer plant layout)
- Design Speed: 100 m/min
- Temperature Range: 160–200°C
- Gas Source: 0.4–0.9 Mpa
- Steam Pressure: 0.8–1.3 Mpa
- Corrugated Flute Type: UV Type or UVV Type
Roller Diameter Parameters
- Corrugated Roller Diameter: ¢280mm
- Pressure Roller Diameter: ¢284mm
- Glue Roller Diameter: ¢215mm
- Preheat Roller Diameter: ¢320mm
Motor Parameters
-
Main Drive Motor:
- Power: 7.5KW
- Rated Voltage: 380V, 50Hz
- Operating Standard: Continuous (S1)
-
Suction Motor:
- Power: 7.5KW
- Rated Voltage: 380V, 50Hz
- Operating Standard: Continuous (S1)
General Specifications
| Speed | Max. mechanical speed 150m/min Max. working speed 130 m/min | ||
| Temperature | 165~200oC | ||
| Steam Pressure Consumption |
1.2~1.5MPa 0.6~0.8t/h |
||
| Pressure for paper guiding | 0.4~0.6MPa | ||
| Compressed Air | 0.4~0.9MPa | ||
| Flute | Standard flute shape | UV,V | |
| Standard flute | A, C, B | ||
| It can be decided according to customer’s requests. | |||
The performance may be variant due to the following the situation :
- Quality of paper mill
- Steam saturation level
- condensed water drain flow
- Glue Quality
Roller Diameter
| Name | Roller diameter | Treatment |
| Upper corrugation roller | Φ323mm | Hard chrome plating and grinding |
| Lower corrugation roller | Φ325.5mm | Hard chrome plating and grinding |
| Pressure roller | Φ320.5mm | Hard chrome plating and grinding |
| Engraving roller | Φ254mm | Hard chrome plating and grinding |
| Glue application roller | Φ150mm | Hard chrome plating and grinding |
| Pre-heating Roller of top paper(Down) | Φ320mm | Hard chrome plating and grinding |
| Pre-heating Roller of Core paper(Up) | Φ320mm | Hard chrome plating and grinding |
Specs of Motor
| Motor | Voltage | Property | Power | Working mode |
| Main drive motor | 380V | AC | 15Kw | S1 |
| Blowing motor | 380V | AC | 15Kw | S1 |
| Motor for adjusting glue quantity | 380V | AC | 100w | S2 |
| Motor for adjusting gluing width(Two pics) | 380V | AC | 100w | S2 |
| Motor for Glue pump | 380V | AC | 1.5Kw | S1 |
Note : S1 is of mode of constant working; S2 is of mode of short time working; S3 is of non constant working.
Main Purchased Parts, Materials, and Place of Origin
| Part Name | Origin/Brand | Material/Type |
| Wall and Pedestals | Production Own | HT200 |
| Transmission Case | Hebei | QT200 |
| Rotary Joints & Hoses | Shandong Tengzhou Luguanqiu | - |
| Main Drive Motor | Hebei Hengshui | 7.5KW Speed Motor |
| Bearing | Ha, Wa, Ge / Zhejiang Direction | - |
| Seat Belt Bearing | Zhejiang Five Rings | - |
| High-Pressure Air | Shanghai Yingfa | - |
| Cylinder | Zhejiang Sanzheng | - |
| Solenoid Valve | Zhejiang Sanzheng | - |
| Contactor | France Schneider | - |
