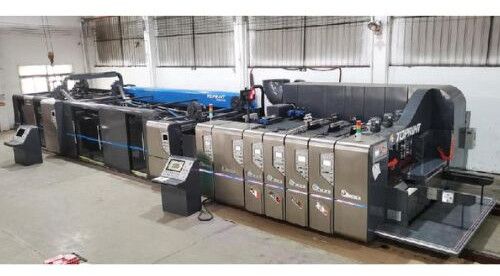

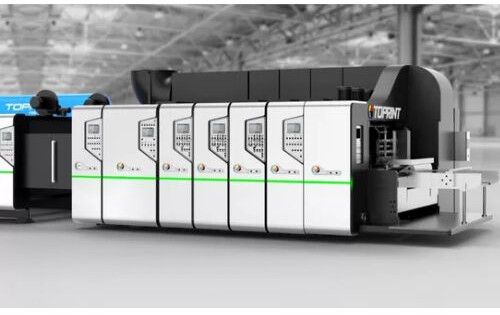

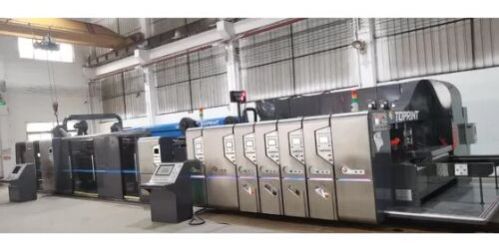

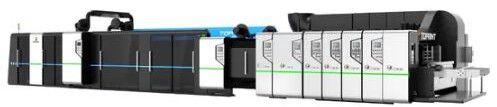

Flexo Printer Slotter Die Cutting with Inline Folder Gluer

Link Copied
3 Crore - 4 Crore / Unit
Business Type Manufacturer, Exporter, Supplier, Retailer, Importer
Brand Name NAGPAL TOPRINT
Color White
Condition New
Click to view more

Product Details

Automatic Grade
Automatic
Certification
ISO 9001:2008 Certified
Voltage
380V
Warranty
3 Year
Country of Origin
CHINA
Material
Mild Steel
Finishing
Coated
Machine Weight
30 TONNES
Packaging Type
Carton Box
Power Source
Electric
Phase
Three Phase
Motor Speed
1440 RPM
Power Consumption
30 KW
Max Cutting Thickness
10mm
Product Code
FFG
Port
China
Payment Terms
L/C, D/P, T/T
Application:
  • Designed for corrugated box production lines

  • Suitable for flexographic printing, slotting, die cutting, folding, gluing, and counting in a single integrated system

  • Ideal for producing RSC (Regular Slotted Cartons) and various die-cut corrugated packaging

Key Components & Specifications: 1. Flexo Printing Unit:
  • High-speed flexographic printer (up to 3-4 colors or as per configuration)

  • Ceramic anilox rollers for consistent ink transfer

  • Doctor blade system for precise ink metering

  • Vacuum or lead edge feeder for smooth feeding of boards

  • Infrared or UV drying system (optional)

2. Slotter Unit:
  • High-precision slotting with servo-controlled knives

  • Capable of multiple slotting and creasing patterns

  • Auto setup for order changeovers

  • Slitting knives and scoring wheels included

3. Rotary Die Cutter:
  • Accurate rotary die cutting cylinder

  • Rubber anvil for clean, burr-free cuts

  • Suitable for custom-shaped boxes and perforation jobs

  • Die-to-print registration control ensures accuracy

4. Folder Gluer Unit:
  • Inline folding and gluing mechanism

  • Suitable for cold glue or hot melt systems

  • Servo-controlled folding belts for precise box folding

  • Auto box forming and aligning system

5. Counter Ejector:
  • Fully automatic counting, stacking, and ejecting

  • Adjustable for different bundle sizes and box types

  • Touch screen control panel with job memory function

Performance & Capabilities:
  • Production speed: Up to 300 sheets/min (depending on configuration and box size)

  • Sheet size range:

    • Max sheet size: ~1400–2500 mm (width) x 1000–1400 mm (length)

    • Min sheet size: ~350 x 600 mm (varies by model)

  • Board types: 3-ply, 5-ply, 7-ply corrugated boards (A, B, C, E, F flute)

  • Printing registration: ±0.5 mm

  • Slotting accuracy: ±1.0 mm

  • Die cutting accuracy: ±1.5 mm

  • Folding accuracy: ±1.5 mm

Automation & Controls:
  • Centralized PLC control system with touchscreen HMI

  • Memory functions for repeat jobs

  • Quick changeover system for different box sizes and types

  • Remote diagnostics and software upgrade capability (optional)

Features & Benefits:
  • Complete inline processing reduces handling and increases productivity

  • High precision and repeatability

  • Energy-efficient systems and low maintenance

  • Robust design for continuous operation

  • CE-compliant safety features and guards
