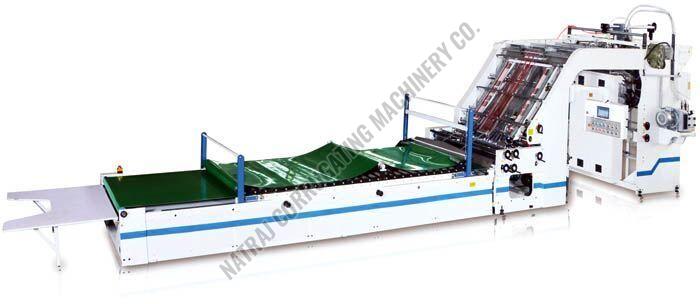

Fully Automatic Servo Type Flute Laminator Machine

Link Copied
45 Lac - 65 Lac / Set
Business Type Manufacturer, Exporter, Supplier, Retailer, Importer
After-Sales Service Provided Provided
Brand Name Nagpal Natraja
Warranty 1 Year
Click to view more

Product Details

Driven Type
Electric
Power
9-12kw
Automatic Grade
Fully Automatic
Condition
New
Voltage
380V
Color
White
Weight
4000-5000kg
Application
Laminating Machinery,Board to Board pasting
Certification
ISO 9001:2008
Type
Automatic Flute Laminating Machine
Product
Automatic flute laminator
Product Code
03
Port
TKD Delhi
Payment Terms
L/C, T/T
Delivery Time
Within 30 working days
Packaging Details
Standard Packing

This Computerized High-Speed Laminator is engineered for precision lamination in high-volume corrugated packaging production. With a capacity of up to 15,000 sheets per hour, it is ideal for laminating top paperboard (≥350 gsm) to corrugated sheets (A/B/C/D/E/F/N flutes) and supports 3, 5, and 7-ply board configurations.

The system combines servo-controlled alignment, automated glue regulation, and a high-suction feeder to deliver unmatched speed, accuracy, and reliability.

Key Features:High-Speed & Precision Operation
  • Output capacity: Up to 15,000 sheets/hour

  • Taiwan-imported high-speed feeder with high suction ensures stable feeding and excellent accuracy even at full speed.

  • Adjustable paper feeding speed to match various production needs.

Advanced Gluing System
  • High-precision glue application with mirror and rubber rollers ensures consistent coating across the entire sheet.

  • Automatic glue level control system prevents glue overflow and minimizes waste during high-speed operations.

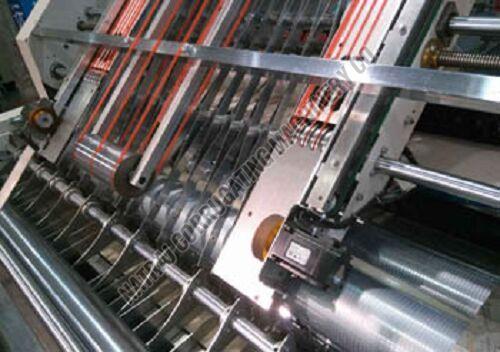

Compensation Aligning Device
  • Integrated photoelectric sensor system constantly monitors sheet alignment.

  • Dual side servo motors independently correct the top and bottom sheet positions in real-time for precise registration.

Smart Control & Diagnostics
  • Equipped with HMI + PLC control system

  • Real-time display of:

    • Operating status

    • Troubleshooting alerts

    • Paper misalignment and jam detection

  • Easy operator interface with diagnostics and parameter adjustments

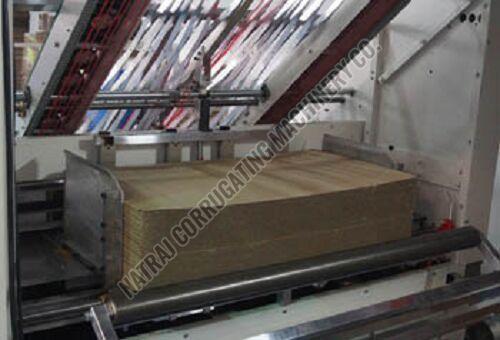

Stable Conveying & Paper Control
  • Photoelectric pile height control ensures consistent feeding pressure and stability of paper flow.

  • Imported HOES suction belt guarantees smooth, flat, and stable conveying.

Material Compatibility:
  • Top Sheet: Paperboard ≥ 350gsm

  • Bottom Sheet:

    • Corrugated board (A, B, C, D, E, F, N flutes)

    • 3-ply, 5-ply, and 7-ply combinations

System Highlights:
FeatureDetails
Max Speed Up to 15,000 sheets/hour
Feeding System High-suction feeder (Taiwan-imported) with pile height control
Gluing System High-precision with mirror & rubber rollers; automatic glue level control
Alignment System Photocell sensors with dual servo side compensation
Control System Touchscreen HMI + PLC with real-time diagnostics
Conveyor System HOES high-suction belt (imported)

Advantages:



  • Exceptional laminating accuracy at high speeds

  • Reduced glue waste and spillage

  • Automated alignment and glue control reduce operator error

  • Low maintenance with self-diagnostic functions

  • Ideal for high-end packaging with tight tolerances

Yes! I am interested


Machine Specification

Specification

CY-1450

CY-1300

Max Sheet

1450*1200mm

1300*1200mm

Min. Sheet

450*450mm

450*450mm

Thickness of Surface Paper

200-800g/㎡

200-800g/㎡

Thickness of Bottom Paper

0.5-10mm

0.5-10mm

Laminating precision

±1mm

±1mm

Dimension

13500L*2450W*2400H

13500L*2300W*2400H

Speed

150m/min

150m/min

Total power

25KW

25KW

Weight

5T

5.5T
