Automatic Corrugated Carton Board Box Making Plant

Link Copied
4 Crore - 5 Crore / Set
Business Type Manufacturer, Exporter, Supplier, Retailer, Importer
Application Carton / Corrugation Boxes
Brand Name Nagpal Natraj
Warrenty 2years
Click to view more

Product Details

Warranty
1 Year
Capacity
1500 Tonnes/ Month
Machine Type
Automatic
Power
380 V
Automatic Grade
Fully Automatic
Condition
New
Weight
70 Tonnes
Certification
ISO
Type
Corrugated Board Making Plant

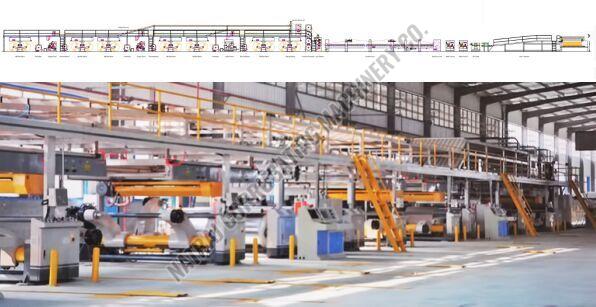

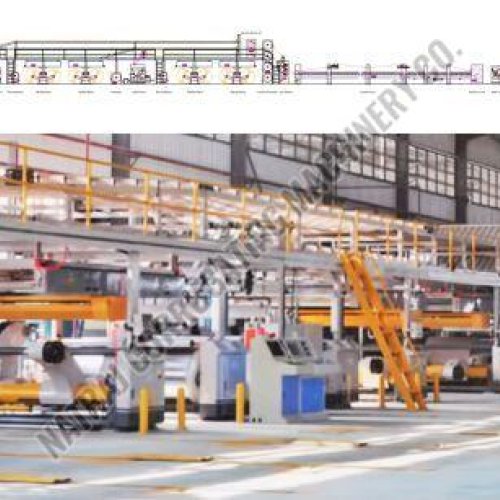

Natraja Automatic corrugated board plant
Super Natraja corrugated bard plant
Automatic corrugated board and box making machine
5 ply automatic corrugated board line
Automatic 3 ply,5 ply corrugated board making machine
corrugated box making machine
Product Code
RNN-6
Port
Delhi
Payment Terms
L/C, T/T
Delivery Time
2 Month
Packaging Details
Container Load
Technical Specifications – Corrugated Board Production Equipment 1. SZC800A Rail & Carriage System

Purpose: Transports paper rolls swiftly to the Mill Roll Stand

  • Available Width: 1800 mm

  • Rail Length: 7500 mm

  • Main Frame: Made from 16# channel steel

  • Drive System: Motor-driven paper roll movement

  • Motor Power: 1.5 kW

  • Safety: Limit switch protection

  • Turn-Plate (Model ZP350): Installed at the rail end near the mill roll stand; enables roll rotation for alignment and positioning

2. YWZJ-B Full Hydraulic Mill Roll Stand

Purpose: Holds and feeds paper rolls to the production line with no downtime

Structural Features:
  • Symmetrical design supports 2 paper reels simultaneously

  • Hydraulic lifting, lowering, and clamping

  • Overload protection device included

  • Pneumatic multi-cylinder braking system for web tension control

  • Expansion chucks for secure paper roll gripping

  • Spindle: Made from seamless top-quality steel pipe

  • Solid steel operation cabinet for system control

Technical Parameters:
FeatureSpecification
Available Width 1800 mm
Max. Paper Roll Diameter Ø1500 mm
Min. Paper Roll Diameter Ø300 mm
Max. Loading Capacity (Per Side) 2500 kg
Max. Working Hydraulic Pressure 16–18 MPa
Hydraulic Motor Power 4 kW
Clamping Motor 0.75 kW × 4 units

3. DWB Single Facer (Fingerless Type)

Purpose: Converts liner and medium paper into single-faced corrugated board

Structural Features:
  • Vacuum suction, fingerless design for optimal flute formation

  • Independent drive box reduces dynamic vibration and improves running stability

  • Pneumatic controls for:

    • Corrugating roll engagement/disengagement

    • Pressure roll load/unload

    • Glue unit on/off switching

  • Glue System:

    • Self-circulating gravity-fed glue system

    • Motorized guide plate adjustment for different web widths

    • Motorized glue quantity control

  • Corrugating Rolls:

    • Diameter: Ø323 / Ø325 mm

    • Material: 48CrMo alloy steel

    • Heat treatment: Induction hardened, hardness HRC 55–60

    • Excellent wear resistance and extended lifespan

  • Pressure Roll: Ø320 mm

  • Main Bearings: High-temperature grease-lubricated for reliability and sealing
