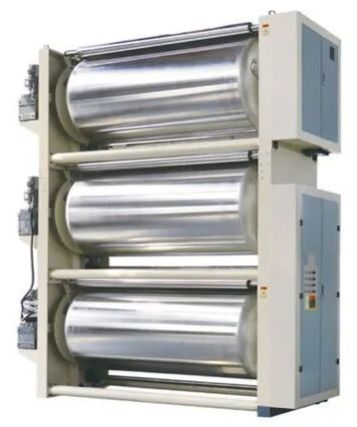

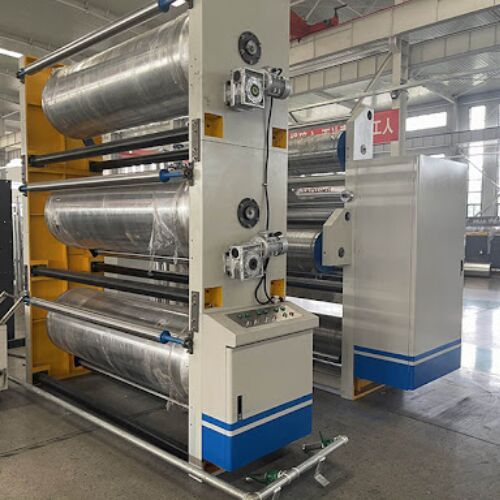

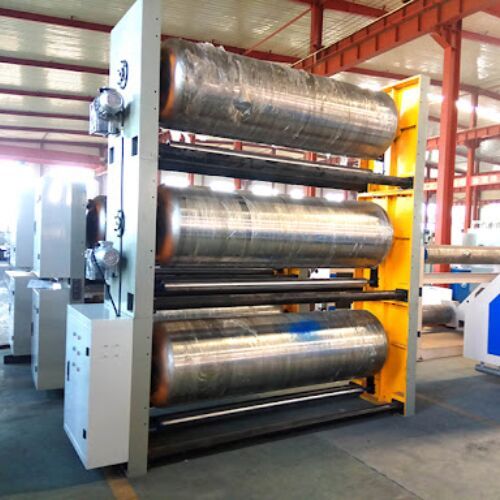

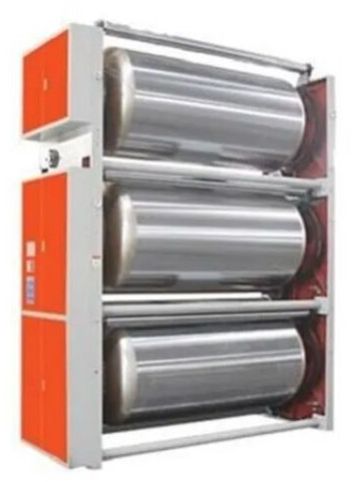

Corrugated Cardboard Preheater


Price : INR 500,000.00 / 500000 Piece(s)




â»RG-3-600triple preheater

â»Structural featuresï¼

âpreheat roller accord with the national standard of the pressure vessalï¼and enclosed the pressure container certificate and inspection certificateã

âEach roller surface after grinding precision grinding and dealing with hard chrome plating, Surface friction is small, durableã

âelectromotion adjustable angle, it can rotated adjust the paper preheat area in the range of 360°ã

â»technical parametersï¼

1ãdiameter of preheat rollerï¼ï¿ 600mm      range of angle adjustmentï¼360°rotation    diameter of wrap angle axisï¼ï¿ 85mm

2ãsteam temperatureï¼150-200â      steam pressureï¼0.8-1.3Mpa

3ãmotor powerï¼250W     shortï¼S2ï¼working system      380V     50Hz

â»Mainly purchased parts, raw materials and originï¼







Name of main parts

Brands or place of origin

material

Steam rotation joint

Fujian quanzhou yujie



preheater

Hangang or jigang

Q235B pressure containerboard

bearing

HRB,ZWZ,LYC



Seat belt bearing

Zhejiang wuhuan bearing



reducer

Shandong dezhou jinbuhuan



contactor

France Schneider



Angle axis



GB seamless steel pipeï¿ 110

traps

Beijing




Specifications

Type Automatic
Brand Name Chinese
Use for Corrugated Board & Box making Machines.
Place of Origin China
Preheater Machine 500000

Additional Information

Product Code 010
Min. Order Quantity 1
Port China
Payment Terms T/T, Other
Delivery Time 30Days
Packaging Details Container Load


Technical Specifications

Working Width(mm) 1600
Direction  Left or right, according to customer
Pre-heater range 60o~220o
Temperature 130~200oC
Diameter of pre-heater(mm) Φ900
Steam Consumption 0.3t/h
Steam Pressure 0.8~1.4MPa
Power
(Kw)
Pre-heater
0.55
Motor working mode S2/S1
